One query, three versions, and the one rule that explains all of them.

The question sounds simple:

“Show me all bookings that have not been invoiced yet — so no invoice that is already Exported or Printed.”

A first attempt at this query returns too many rows. The obvious “fix” returns too few. Both mistakes are extremely common, and both come from the same misunderstanding: the difference between putting a condition in the ON clause and putting it in the WHERE clause of an outer join.

Let’s rebuild it step by step.

The setup

Three tables: bookings, invoices, and invoice lines that connect a booking to an invoice.

CREATE TABLE dbo.Bookedres    (BResKey int);
CREATE TABLE dbo.Invoices     (InvKey int, InvStatus varchar(20));
CREATE TABLE dbo.InvoiceLines (InvLBResKey int, InvLInvKey int, oms varchar(20));

INSERT dbo.Bookedres    VALUES (10), (20), (30), (40);

INSERT dbo.Invoices     VALUES (111, 'Exported'),
                               (222, 'Printed'),
                               (333, 'To be Printed');

INSERT dbo.InvoiceLines VALUES (10, 111, 'abc'),
                               (10, 111, 'xyz'),
                               (20, 222, 'sde'),
                               (30, 333, 'klm'),
                               (30, 333, 'fer');

The data looks like this:

dbo.Bookedres

BResKey
10
20
30
40

dbo.Invoices

InvKey	InvStatus
111	Exported
222	Printed
333	To be Printed

dbo.InvoiceLines

InvLBResKey	InvLInvKey	oms
10	111	abc
10	111	xyz
20	222	sde
30	333	klm
30	333	fer

Booking 40 has no invoice lines at all — remember that one, it’s going to be important.

Put together per booking:

Booking	Invoice	Status	Should it be in the result?
10	111	Exported	❌ already invoiced
20	222	Printed	❌ already invoiced
30	333	To be Printed	✅ invoice still open
40	—	no invoice at all	✅ not invoiced yet

So the correct answer is booking 30 and booking 40. Keep that in mind.

First, the one thing you need to know

SQL Server doesn’t execute your query top-to-bottom as you read it. Logically, it works in this order:

FROM + JOIN … ON — build the rows
WHERE — throw rows away
SELECT — pick the columns

And for a LEFT JOIN there is one golden rule:

The ON clause of a LEFT JOIN can never remove a row from the left table. It only decides which right-hand rows match. If nothing matches, the left row stays and the right-hand columns become NULL.

Only the WHERE clause can remove rows. Everything below follows from that.

Version 1 — filter in the `ON`: too many rows

The first attempt puts the “not already invoiced” check in the ON clauses — once as an EXISTS on the invoice lines, and once more on the invoices:

SELECT *
FROM dbo.Bookedres
LEFT JOIN dbo.InvoiceLines c
       ON BResKey = c.InvLBResKey
      AND EXISTS (SELECT 1
                  FROM dbo.Invoices x
                  WHERE x.InvKey = c.InvLInvKey
                    AND x.InvStatus NOT IN ('Exported', 'Printed'))
LEFT JOIN dbo.Invoices d
       ON c.InvLInvKey = d.InvKey
      AND d.InvStatus NOT IN ('Exported', 'Printed');

Result — 5 rows:

BResKey	InvLInvKey	oms	InvStatus
10	NULL	NULL	NULL
20	NULL	NULL	NULL
30	333	klm	To be Printed
30	333	fer	To be Printed
40	NULL	NULL	NULL

Bookings 10 and 20 are still there. Why? For booking 10 the EXISTS is false (its invoice is Exported), so the join to InvoiceLines fails — and a failing LEFT JOIN doesn’t remove the row, it just fills c.* (and therefore d.*) with NULL. The intention was to exclude bookings, but the ON clause can only un-match them.

Notice how misleading the output is: bookings 10 and 20 now look exactly like booking 40 — “no invoice at all” — while in reality they are already invoiced. Nothing in the result tells you the difference.

And the status filter on d? It never does anything: a line only gets through the first join when its invoice is open, so d.InvStatus NOT IN (…) is always true for the rows that reach it. Two filters, zero effect on which bookings come back.

Version 2 — the classic “fix”: too few rows

The natural reaction is: “then move the filter to the WHERE“:

SELECT *
FROM dbo.Bookedres
LEFT JOIN dbo.InvoiceLines c
       ON BResKey = c.InvLBResKey
LEFT JOIN dbo.Invoices d
       ON c.InvLInvKey = d.InvKey
WHERE d.InvStatus NOT IN ('Exported', 'Printed');

Result — 2 rows:

BResKey	InvLInvKey	oms	InvStatus
30	333	klm	To be Printed
30	333	fer	To be Printed

Booking 40 is gone — and it’s exactly the kind of booking we were looking for!

What happened: after the joins, booking 40 has d.InvStatus = NULL. Then the WHERE evaluates

NULL NOT IN ('Exported', 'Printed')

That is not TRUE — it’s UNKNOWN. And WHERE only keeps rows that are TRUE. So every row where the outer join found nothing is thrown away.

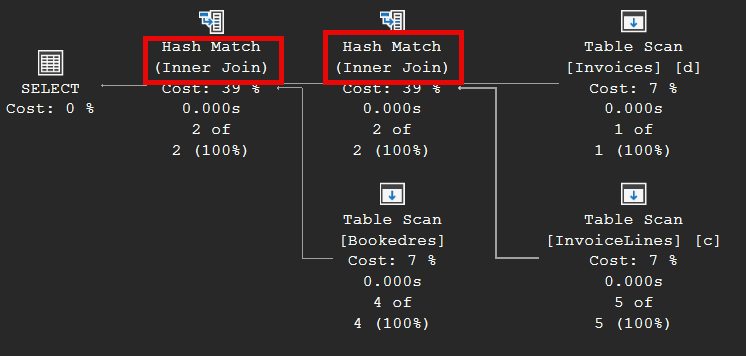

This is the classic outer join filter error: a WHERE condition on a column of the right-hand table silently turns your LEFT JOIN into an INNER JOIN. You wrote LEFT, but you get INNER behaviour. (Tip: look at the actual execution plan — the optimizer often notices this too and simply shows an inner join.)

Version 3 — the correct query

Separate the two jobs:

ON: only connect the tables.
WHERE: decide which bookings to drop — the ones that have an Exported/Printed invoice.

SELECT *
FROM dbo.Bookedres
LEFT JOIN dbo.InvoiceLines c
       ON BResKey = c.InvLBResKey
LEFT JOIN dbo.Invoices d
       ON c.InvLInvKey = d.InvKey
WHERE NOT EXISTS (SELECT 1
                  FROM dbo.InvoiceLines c2
                  JOIN dbo.Invoices d2 ON c2.InvLInvKey = d2.InvKey
                  WHERE c2.InvLBResKey = BResKey
                    AND d2.InvStatus IN ('Exported', 'Printed'));

Result — 3 rows, booking 30 and booking 40:

BResKey	InvLInvKey	oms	InvStatus
30	333	klm	To be Printed
30	333	fer	To be Printed
40	NULL	NULL	NULL

Why this works:

The NOT EXISTS is in the WHERE, so it really removes bookings 10 and 20.
It’s a check per booking, not a comparison against a column of the outer-joined table, so a booking without any invoice (40) gives NOT EXISTS = TRUE and stays. No NULL trap.

All three side by side

Version	Filter placed in	Rows	Bookings	Problem
1	`EXISTS` / status in `ON`	5	10, 20, 30, 30, 40	Too many — `ON` can’t remove bookings
2	`InvStatus NOT IN` in `WHERE`	2	30, 30	Too few — `NULL` → `UNKNOWN`, LEFT becomes INNER
3	`NOT EXISTS` in `WHERE`	3	30, 30, 40	✅ Correct

“But booking 30 is there twice?”

That’s not a bug in the filter — booking 30 has two invoice lines (klm and fer), and joining a one-to-many relationship gives you one row per line. If you want one row per booking, don’t join the lines at all; fetch what you need per booking:

SELECT b.BResKey, oi.InvKey, oi.InvStatus
FROM dbo.Bookedres b
OUTER APPLY (SELECT DISTINCT i.InvKey, i.InvStatus
             FROM dbo.InvoiceLines il
             JOIN dbo.Invoices i ON i.InvKey = il.InvLInvKey
             WHERE il.InvLBResKey = b.BResKey) oi
WHERE NOT EXISTS (SELECT 1
                  FROM dbo.InvoiceLines c2
                  JOIN dbo.Invoices d2 ON c2.InvLInvKey = d2.InvKey
                  WHERE c2.InvLBResKey = b.BResKey
                    AND d2.InvStatus IN ('Exported', 'Printed'));

Result — one row per booking:

BResKey	InvKey	InvStatus
30	333	To be Printed
40	NULL	NULL

“Too many rows” has two possible causes, and it pays to ask which one you’re looking at: a filter in the wrong place, or a one-to-many join doing exactly what you told it to.

Cheat sheet

ON in a LEFT JOIN = “which right-hand rows match?” It never removes left rows.
WHERE = “which result rows survive?” It’s the only place that removes rows.
A WHERE condition on a right-hand column turns LEFT JOIN into INNER JOIN — unless you explicitly allow the NULL (… OR d.InvKey IS NULL).
“Exclude X if something exists elsewhere” → WHERE NOT EXISTS (…). It reads like the business question and has no NULL surprises.
Duplicate rows? First check your join cardinality (one-to-many), before you reach for DISTINCT.
Give subquery tables their own aliases (c2, d2). Reusing c and d inside the subquery is legal — the inner alias hides the outer one — but it makes the query very hard to read and review.

The quick test for any outer join you write: add a row on the left side that has no match at all (like booking 40). If it disappears from your result, you have the classic error.
